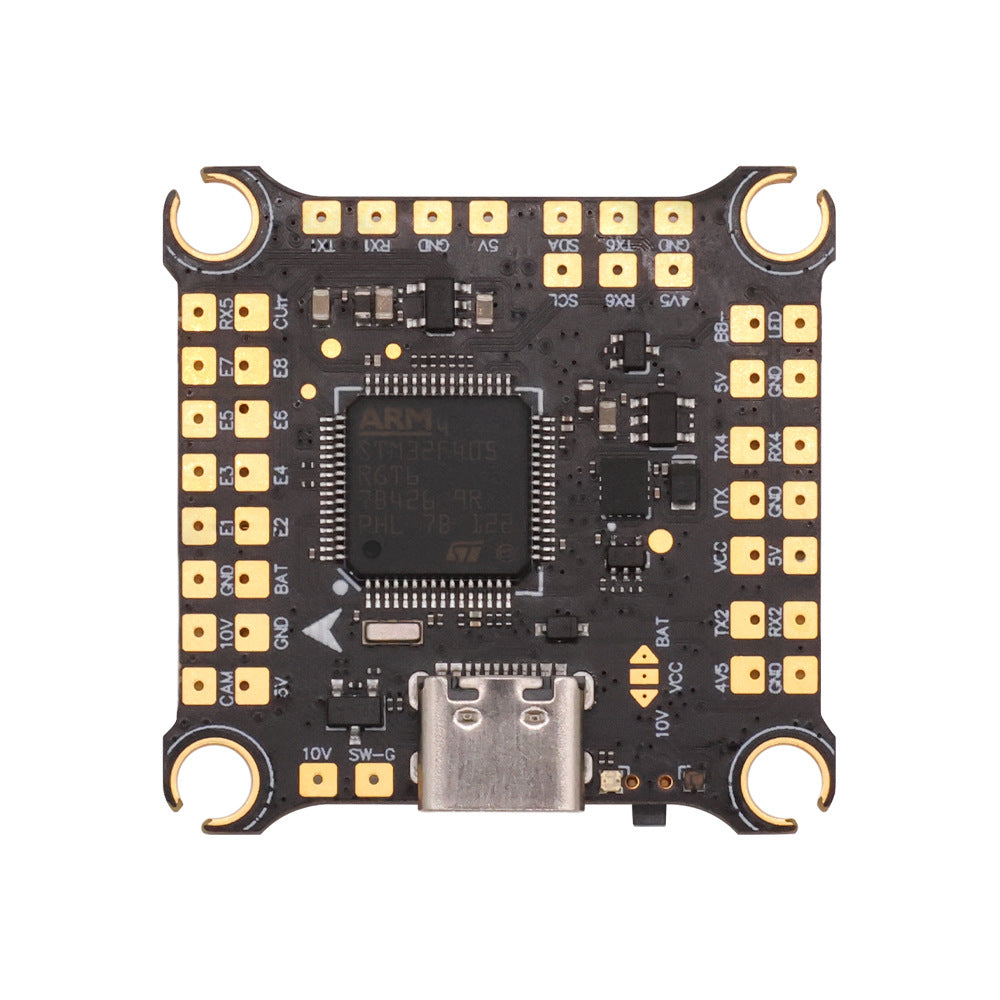

HAKRC F405V2DJI Flight controller Dual BEC barometer gyroscope 3-6S Traverser race flight control
HAKRC F405V2DJI Flight controller Dual BEC barometer gyroscope 3-6S Traverser race flight control
HAKRC F4530V2 flight control specification
Ø Product features:
1.PCB adopts high-end 6-layer 1oZ thickened copper skin, applying high-end resin plug PCB production process, strong anti-interference ability.
2. Industrial grade LDO, high temperature resistance.
3. Use in-line connector for easy installation and no soldering.
4. Onboard with 4 programmable LED lights, you can freely switch the LED lighting effect.
5. Reserve the external LED light with 10V power supply, you can customize the remote control channel for the switch control of the light belt.
6. Diagram transmission power supply, you can set the switch channel through the ground station, freely open or close the diagram transmission power supply, easy to adjust the ground.
7. High quality Japanese Murata capacitor, strong filtering performance.
8. Eight-way motor control signal output.
9. Comes with 6P sky end seat.
10. Connect the RX2 to the SBUS.
Ø Product specifications:
Size: 36* 36mm (30.5mm-30.5mm mounting hole spacing)
Packing size: 64*64*35mm
Input voltage: 2S-6S Lipo
Net weight: 8.5g
Packing weight: 40g
Ø Flight control parameters:
CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
Barometer: Integrated
Black box: 16M
BEC: 5V/3A
BEC: 10V/2.5A
LED: Comes with four programmable LED magic lights
Sensor: Built-in current sensor
Firmware version: HAKRCF405V2
Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX:DSM2 receiver
