Betaflight F4 MINI F3 OSD 80-90 Brushless indoor BEC with integrated 5V/1A

MINI Mini F3OSD Flight control
The flight control is used to assemble a small four-axis of about 80-90, the motor is 1104 7500KV, and the battery is about 2S 400-500MAH. Blade Choose a 2 inch paddle with 3 or 4 blades. Then the receiver is recommended to buy a miniature receiver (can be equipped with FRSKY FLYSKY DSM2, Heaven and Earth fly miniature receiver). Make it as light and simple as possible! Picture transmission choose 25-200 adjustable integrated picture transmission, but the picture transmission power supply must be connected to the power supply.

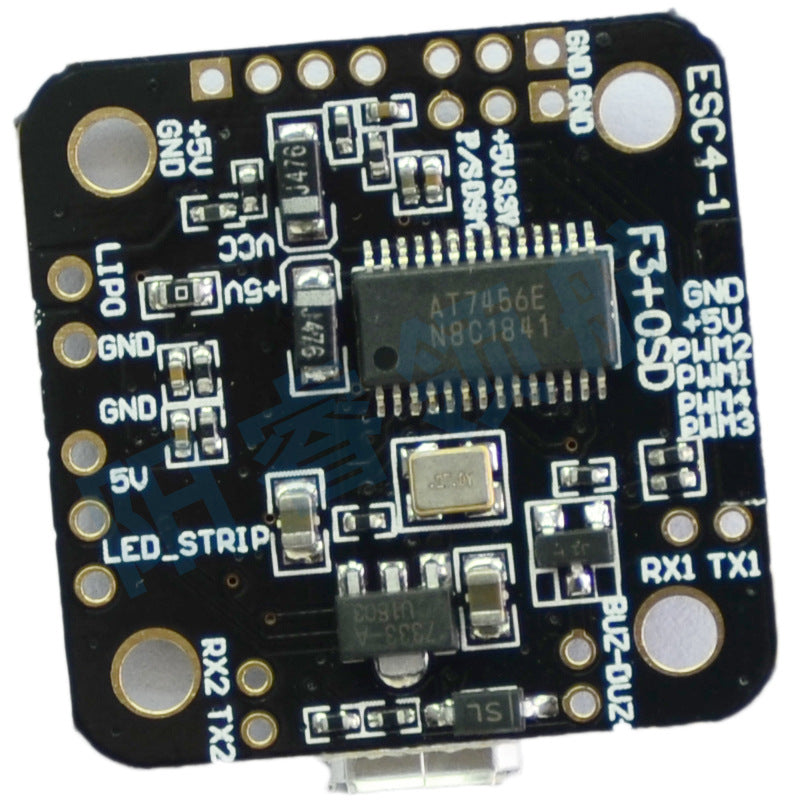

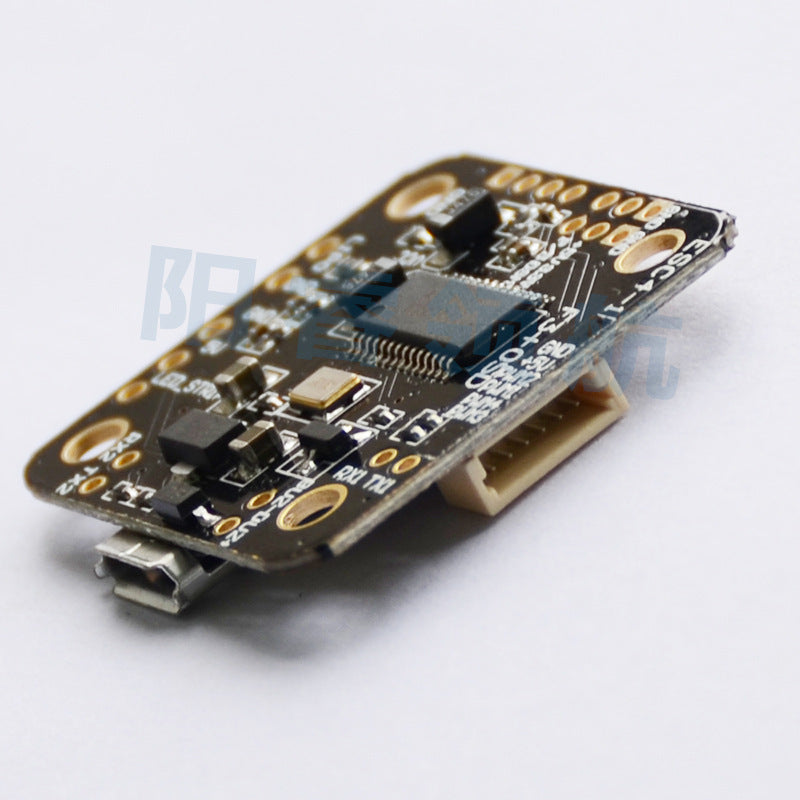

Omnibus F3(integrated OSD) Mini flight control parameters:

First, F3 equipped with MPU6000 flight control acceleration response is faster; Integrated 5V/1A BEC and OSD. (This version is 6DOF, without barometer and electronic compass)

1.Specially designed for small traversing machine, suitable for the size of the frame below 280mm, especially 130mm frame can play a small and full function advantage;

2. This board provides all functions, weight only 8g, size only 27*27MM, fixed hole position is 20MM (M2.5 hole position);

3. Specially tailored for four-axis models, built-in LC filter, support BF firmware (Omnibus F3 firmware);

4. STM32F303 MCU, MPU6000 sensor SPI interface connection, faster operation rate;

5. Support 2-4S power input;

6. Built-in 5V 1A output BEC;

7. Support SBUS/PPM/DSMX and other mainstream receivers;

8. Buzzer/programming LED/ voltage monitoring /BLHELI modulation programming;
